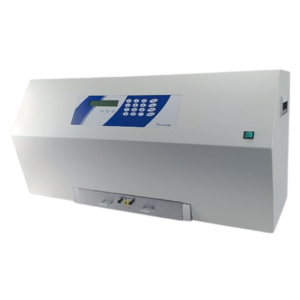

Bio-Sun UV Irradiation System

A complete, microprocessor-controlled UV irradiation system for Petri dishes or micro-plates.

System Overview

The Vilber Bio-Sun is a UV irradiation system, designed for use with Petri dishes or micro-plates. Equipped with a programmable microprocessor, the system continuously monitors the UV light emission and adjusts the irradiation once the programmed energy level is reached. Its advanced UV sensors ensure consistent and reproducible irradiation cycles, even when the UV source intensity fluctuates. Just program your energy and Bio-Sun delivers it!

Features & Benefits

UV Master Technology

Highly concentrated UV radiation.

Ondulex Reflector

Reflect the maximum UV output.

Easy to Handle and Maintain

Spacious UV exposure chamber in stainless steel.

High Accuracy and Reproducibility

Photoelectric sensor for direct measurement of the UV intensity.

Long Lifetime

Protective quartz disk on the UV sensor cell.

Model & Specifications

Bio-Sun

Maximum irradiation area for Petri dishes: 260 x 120mm
Maximum irradiation area for Elisa microplates: 260 x 90mm
Irradiation Homogeneity for UVA and UVB sources (312 and 365nm): +/- 7%
UVC 254nm germicidal lamp for tray sterilization
Irradiation time less than 40 seconds for a programmed dosis (energy) of 150 mJ/cm²
Up to 6 UV measurements per second
Maximum temperature in the receptacle for microplates or petri dishes: 30°C for an external temperature of 20°C
