OxyLite™ and OxyFlo™
Combined Systems
Pioneering Instrumentation
for the Bio-sciences Sector
System Overview
One of the most powerful and unique features offered by Oxford Optronix tissue vitality monitors is the ability to measure tissue oxygen, laser-Doppler blood flow and temperature simultaneously from the same tissue micro-region. This is achieved by combining counterpart monitors into a ‘stack’ arrangement and the use of the unique, combined, multi-parameter sensors.
The use in this way of a 4-channel OxyLite™ Pro XL and a 4-channel OxyFlo™ Pro XL device enables the collection of multi-parameter physiological data from up to four independent tissue sites at one time, providing unsurpassed data collection and productivity potential.
Please refer to the individual product pages for in-depth key features and benefits.
Applications in which Oxford Optronix OxyLite™ and OxyFlo™ monitors have been employed together for the simultaneous, single-sensor monitoring of tissue oxygen, blood perfusion and temperature include:
- Tumour angiogenesis
- Vital organ vitality during transplantation and shock monitoring
- Cerebral vitality monitoring during stroke
- Brain and spinal cord injury models
- Tissue flap surgery and wound healing
Statement of intended use:
OxyLite™ (Pro) and OxyFlo™ (Pro) monitors are intended for laboratory, industrial and research use and are NOT medical devices.
OxyLite™ (Pro) and OxyFlo™ (Pro) do NOT possess regulatory approval(s) for use in human subjects/patients.
Models
OxyLite™ and OxyFlo™
-
Single-channel combined oxygen, temperature and laser-Doppler tissue blood perfusion monitoring (stacked single-channel OxyLite™ and OxyFlo™ monitors)
OxyLite™ Pro and OxyFlo™ Pro
-
Combined TWO or FOUR channel oxygen, temperature and laser-Doppler tissue blood flow monitoring, with integrated touch-screen displays (stacked multi-channel OxyLite™ Pro and OxyFlo™ Pro monitors)
Data Example A Model of Global Ischaemia/Reperfusion Injury in Rat
A single, combined oxygen/blood flow/temperature sensor was used to invasively measure the effect of transient global cerebral ischaemia induced by common carotid artery occlusion. The upper trace shows pO2 in units of mmHg, the middle trace shows temperature in units of degrees C, while the lower trace shows continuous blood flow in arbitrary ‘blood perfusion units’ (BPU).
Applications
Tumour/Cancer
Kieda C, Hafny-Rahbi B, Collet G, Lamerant-Fayel N, Grillon C, Guichard A, Dulak J, Jozkowicz A, Kotlinowski J, Fylaktakidou KC, Vidal A, Auzeloux P, Miot-Noirault E, Beloeil JC, Lehn JM, Nicolau C., Stable tumor vessel normalization with pO2 increase and endothelial PTEN activation by inositol trispyrophosphate brings novel tumor treatment. J Mol Med (Berl) (2013); 91(7), 883-99 [LINK]
Instruments cited: OxyLite™ 2000 and OxyFlo™ 2000
Ophthalmology
Lim JK, Nguyen CT, He Z, Vingrys AJ and Bui BV, The effect of ageing on ocular blood flow, oxygen tension and retinal function during and after intraocular pressure elevation. PLoS One (2014); 9(5), e98393 [LINK]
Instruments cited: OxyLab pO2™ and OxyLab LDF™
Current product: OxyLite™ and OxyFlo™ &trade
Physiology/Ischemia
Radiloff D, Zhao Y, Boico A, Blueschke G, Palmer G, Fontanella A, Dewhirst M, Piantadosi CA, Noveck R, Irwin D, Hamilton K, Klitzman B, Schroeder T, Anti-hypotensive treatment and endothelin blockade synergistically antagonize exercise fatigue in rats under simulated high altitude. PLoS One (2014); 9(6), e99309 [LINK]
Instruments cited: OxyLite™ 2000 and OxyFlo™ 2000
Khan MA, Maasch C, Vater A, Klussmann S, Morser J, Leung LL, Atkinson C, Tomlinson S, Heeger PS, Nicolls MR., Targeting complement component 5a promotes vascular integrity and limits airway remodeling. Proc Natl Acad Sci USA (2013); 110(15), 6061-6 [LINK]
Instruments cited: OxyLab pO2™ and OxyLab LDF™
Nasui1 OC, Nathanael G, Miller E, Belik J, Crawley A, Weiss R, Detzler G, Zhong A, Moineddin R and Doria AS, Responsiveness of BOLD MRI to Short-Term Temperature Changes in Rabbit Knees with Inflammatory Arthritis. Rheumatol Curr Res (2012); S2 http://dx.doi.org/10.4172/2161-1149.S2-003 [LINK]
Instruments cited: OxyLite™ 2000 and OxyFlo™ 2000
Cerebral/Stroke/MCAO
Hsu CC, Chen LF, Lin MT, Tian YF, Honokiol Protected against Heatstroke-Induced Oxidative Stress and Inflammation in Diabetic Rats. Int J Endocrinol (2014); 134575 [ [LINK]
Instruments cited: OxyLite™ 2000 and OxyFlo™ 2000
Jan Mazela, T. Allen Merritt, Michael H. Terry, Timothy J. Gregory and Arlin B. Blood, Comparison of poractant alfa and lyophilized lucinactant in a preterm lamb model of acute respiratory distress. Pediatric Research (2012); 72, 32–37 [ [LINK]
Instruments cited: OxyLite™ 2000 and OxyFlo™ 2000
Lee WC, Wen HC, Chang CP, Chen MY and Lin MT, Heat shock protein 72 overexpression protects against hyperthermia, circulatory shock, and cerebral ischemia during heatstroke. J Appl Physiol. (2006); 100(6), 2073-82 [LINK]
Instruments cited: OxyLite™ 2000 and OxyFlo™ 2000
Vital Organs/Shock
Calzavacca P, Evans RG, Bailey M, Lankadeva YR, Bellomo R and May CN, Long-term measurement of renal cortical and medullary tissue oxygenation and perfusion in unanesthetized sheep. Am J Physiol Regul Integr Comp Physiol (2015); 308(10):R832-9 [LINK]
Instruments cited: OxyLite™ 2000 and OxyFlo™ 2000
Patel NN, Toth T, Jones C, Lin H, Ray P, George SJ, Welsh G, Satchell SC, Sleeman P, Angelini GD, Murphy GJ, Prevention of post-cardiopulmonary bypass acute kidney injury by endothelin A receptor blockade. Crit Care Med (2011); 39(4): 793-802 [LINK]
Instruments cited: OxyLab pO2™ and OxyLab LDF™
Dyson A, Stidwill R, Taylor V and Singer M, Tissue oxygen monitoring in rodent models of shock. Am J Physiol Heart Circ Physiol (2007); 293, H526–H533 [LINK]
Instruments cited: OxyLite™ 2000 and OxyFlo™ 4000
Sensors
Sensors for Combined Oxygen and Blood Flow Monitoring
When used together (typically in the ‘stack’ arrangement depicted above), Oxford Optronix oxygen and blood flow monitors uniquely support combined parameter sensors for the simultaneous measurement of tissue oxygen, blood perfusion and temperature from the same tissue micro-region. The following is a list of available combined oxygen and blood flow parameter sensor types.
Oxygen sensors are supplied in sealed Tyvek® pouches.
Combined, Bare-Fibre Oxygen/Blood Flow Sensor
Product Code ‘NX-BF/OF/E’
Flexible, minimally invasive sensor suitable for localized , combined tissue oxygen and blood flow measurements from virtually any tissue type in vivo.
- Tissue placement via introducer (e.g. Angiocath®)
- T-90 response time approx. 20 s
- Manual temperature compensation
- Removable/adjustable Luer
- MRI compatible
Dimensions:
- Tip diameter: approx. 450 µm
- Exposed tip fibre length: 6 cm
- Total sensor length: 2.5 m
Reusability: Limited due to fragility
NOTE: THIS SENSOR TYPE IS ALSO AVAILABLE IN 8 M LENGTH FOR MRI APPLICATIONS
Combined, Bare-Fibre, Triple-Parameter Oxygen/Blood Flow/Temperature Sensor
Product Code ‘NX-BF/OFT/E’
Flexible, minimally invasive sensor suitable for localized , combined tissue oxygen, blood flow and temperature measurements from virtually any tissue type in vivo.
- Tissue placement via introducer (e.g. Angiocath®)
- T-90 response time approx. 20 s
- Automated temperature compensation
- Removable/adjustable Luer
Dimensions:
- Tip diameter: approx. 450 µm
- Exposed tip fibre length: 6 cm
- Total sensor length: 2.5 m
Reusability: Limited due to fragility
User Testimonials
“I found Oxford Optronix´s group of experts to be knowledgeable, friendly and supportive with regular feedback capable to overcome any challenge. The [OxyLite / OxyFlo] system offers a broad range of in vivo applications that provided us the data we require.”
Prof. Martin Matejovic
Charles University and Teaching Hospital, Plzen, Czech Republic
“.. great products with tremendous support. The knowledgeable members of your team are always extremely helpful. The OxyLite and OxyFlo units have been a great asset to our research”
Dr Gregory Hare
University of Toronto, St. Michael’s Hospital, Toronto, Canada
“We use OxyFlo Pro and OxyLite Pro devices in our piglet experiments that focus on validating the non-invasive modalities of quantifying cerebral pressure autoregulation and neurovascular coupling. This is an ongoing project to understand elucidate the mechanisms of brain injury in critically ill infants. We are extremely satisfied with the Oxford Optronix devices. Their customer support service is phenomenal.”
Dr Rathinaswamy Govindan
Children’s National Medical Center, Washington DC, United States
“We collaborate with Oxford Optronix for several years now. Oxford Optronix provided us with an excellent technical support during our efforts in the field of multi-parametric neuro-monitoring. We are impressed not only by their products but also by their commitment to develop cutting edge products for experimental and clinical neuroscience.”
Dr Beat Alessandri
University Medical Center of the Johannes Gutenberg-University, Germany
“In [our] experiments we measure: continuous, relative cortical CBF with your laser Doppler implanted probes, intermittent, but absolute CBF with fluorescent-labelled microspheres, cortical tissue pO2 with your implanted [sensors], cerebral arterio-venous difference and thus the cerebral metabolic rate for O2 by having a sagittal sinus catheter, and electroencephalogram (EEG) for neuronal activity and “sleep state”. Technologically, the experiments are quite a Tour de Force. I thank you, because without the technological expertise Oxford Optronix provides, we could not perform these studies.”
Prof Lawrence Longo
Loma Linda University, CA, United States
“In our studies on the response to gas inhalation in abdominal organs, OxyLite and OxyFlo allowed us to monitor tissue pO2 and perfusion response simultaneously in the liver and kidney. No other minimally invasive system could capture dynamic changes with such fine temporal resolution, and no other system could provide concurrent pO2 and perfusion measurement in multiple tissue regions. Oxford Optronix enabled us to understand the physiological phenomena underlying our magnetic resonance imaging measurements. It is truly a powerful, must-have technology.”
Dr Hai-Ling Margaret Cheng
University of Toronto, Hospital for Sick Children, Toronto, Canada
“We are currently using … the OxyLab LDF and the … OxyLab pO2 … in animal experiments to take recordings in brain tissue. Both of these monitoring systems have proven of great value in studies on focal brain ischemia and reperfusion, in which we have addressed the role of collateral blood flow on tissue perfusion, oxygen supply, and the development of ischemic brain damage. A publication of these data is presently in preparation.”
Prof Lothar Schilling
Universitätsklinikum, Mannheim, Germany
Publications & Articles
Cardiac Function
Application Note: Measuring Coronary Flow Reserve
System Used: Doppler Flow Velocity System M-Series View Paper Here Background Coronary flow
Science Corner: Doppler Flow Velocity Imaging at Dr. Olgin’s Research Lab
Doppler Flow Velocity Imaging at Dr. Olgin’s Research Lab Dr. Jeff Olgin. “Dr.
Article review: “Effects of Isoflurane on Coronary Blood Flow Velocity in Young, Old, and ApoE−/− Mice Measured by Doppler Ultrasound”
Article review: “Effects of Isoflurane on Coronary Blood Flow Velocity in Young, Old,
Frequent Asked Questions – Vessel Chambers
Frequently Asked Questions: Vessel Chambers This Frequently Asked Questions document has been designed

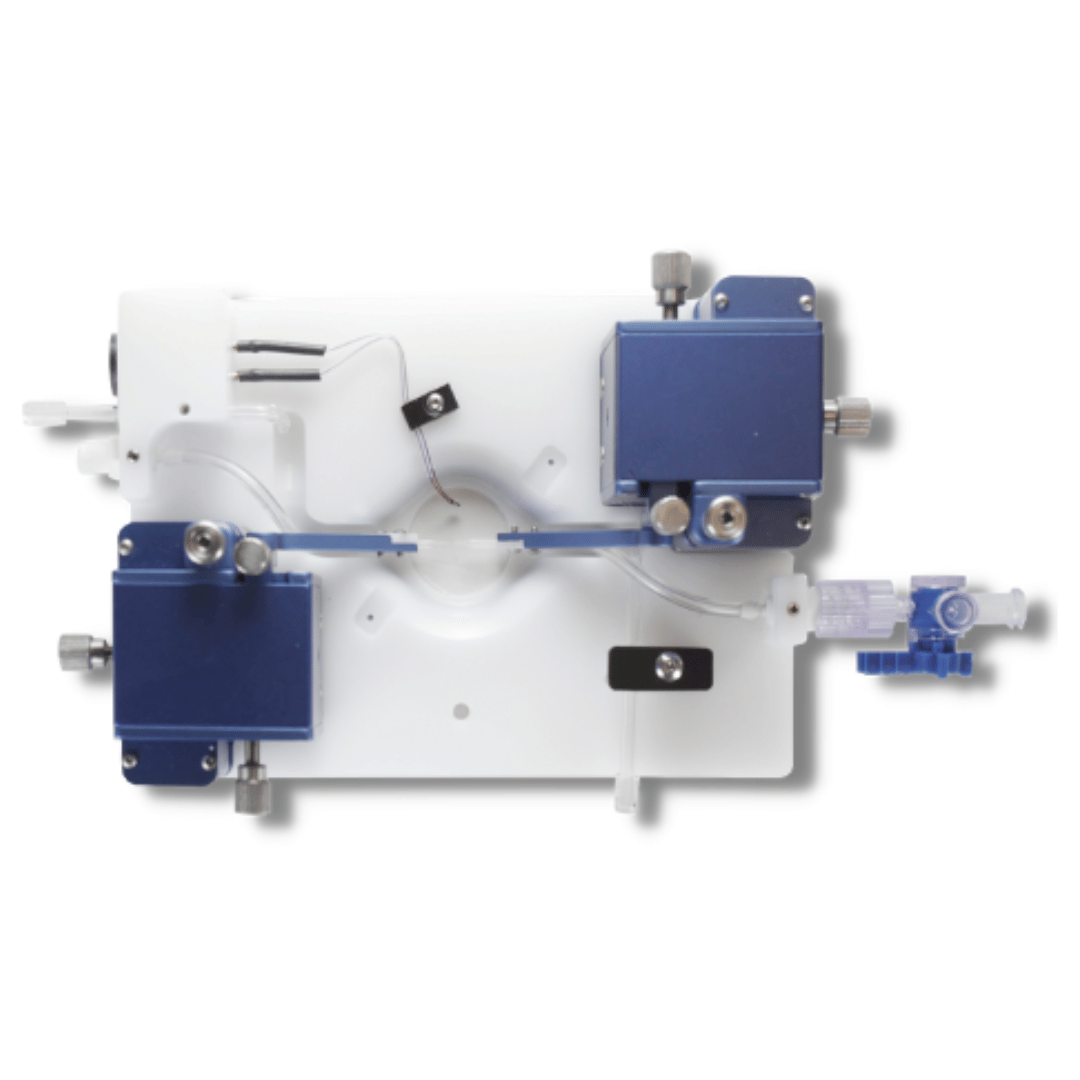

Frequent Asked Questions – Pressure Arteriograph Systems
